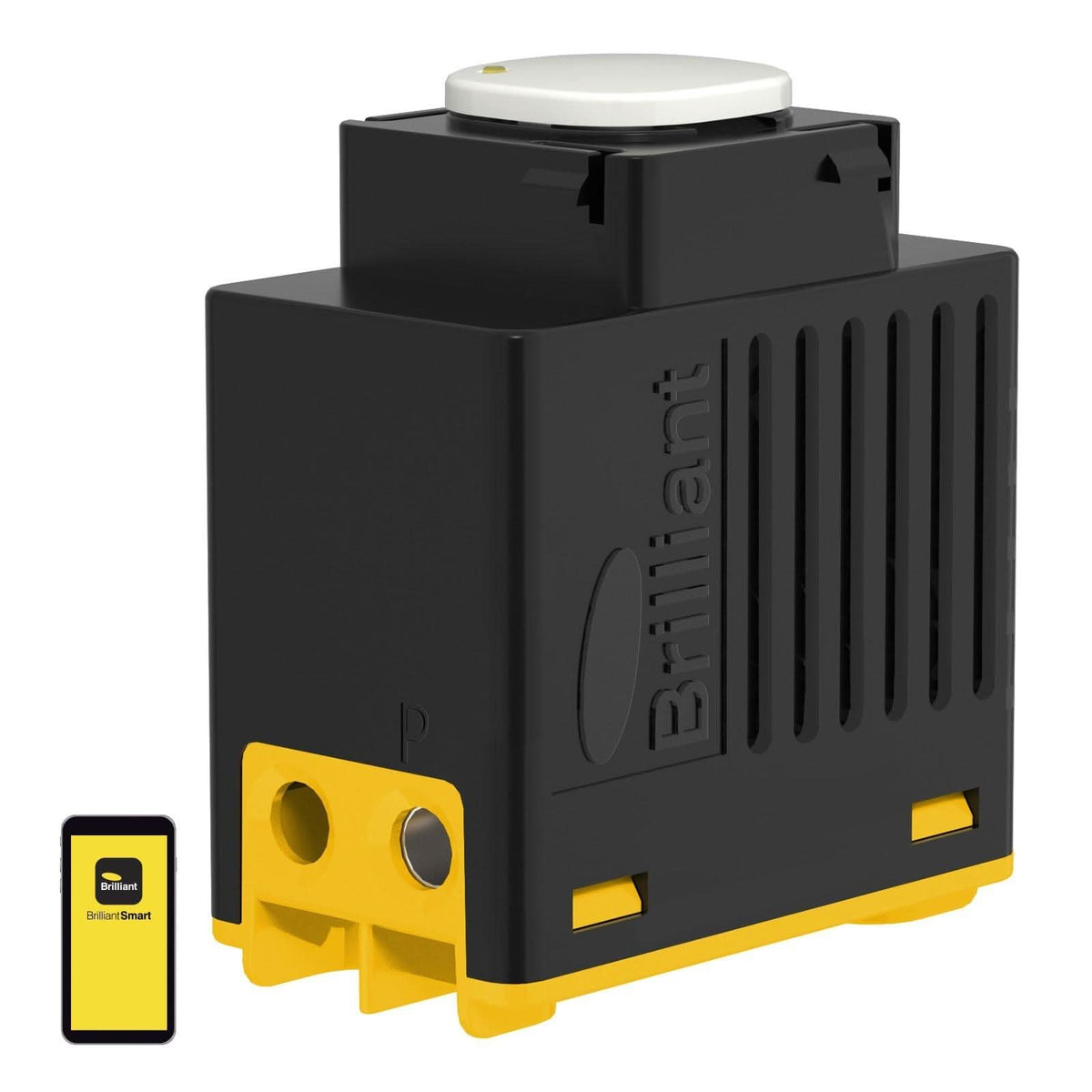

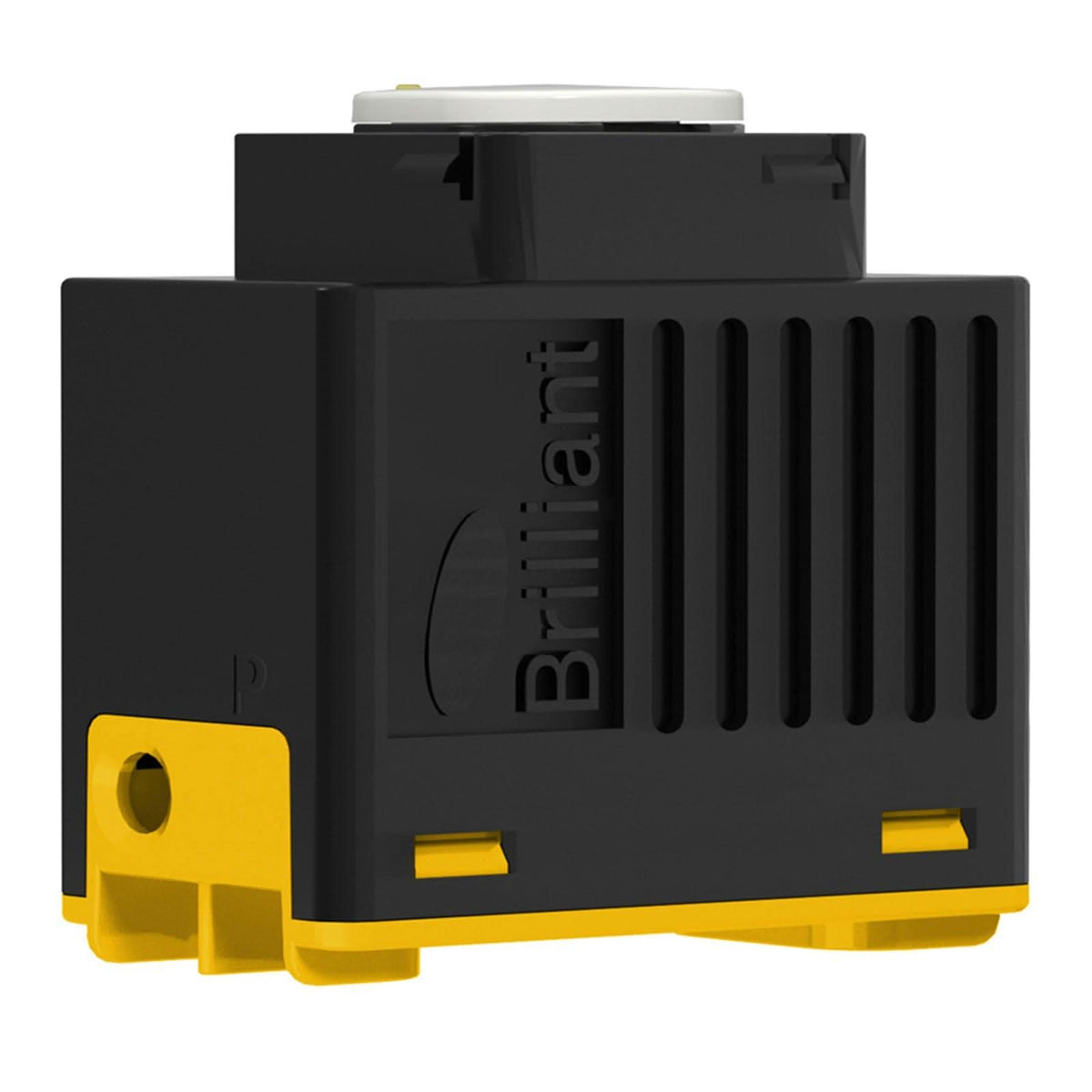

Brilliant Smart Black 2 Wire Push Button Dimmer Mech

Trade Logo
SKU: 22092
Find a Stockist


The Brilliant Smart Black 2-Wire Push Button Dimmer Mech provides effortless lighting control with a modern push-button design. Compatible with dimmable lights, it integrates into smart home systems for convenience and style.

  • Smartify the lights in your home by installing this Wifi Dimmer Mech
  • Fits conveniently into the existing switch plate
  • Perfect for new or retrofit installations
  • Trailing edge dimmer suitable for most lighting products
  • Slots seamlessly into HPM®, Clipsal® and Vynco® branded wall plates
  • Control from anywhere via app or voice control
  • Build schedules and timing to automate your home
  • Create virtual automation looping without the hassle of installing long cable runs*
  • Programmable minimum brightness level to avoid light flickering
  • Incorporates on/off switching and dimming control into one mechanism
  • Soft start for improved lamp life
  • Connects to other BrilliantSmart devices and other compatible products
  • Overheat, Overload and Over-current protection
  • The Manual push button is in perfect sync with the app
Datasheet Download
Family
Dimmer
Minimum load
5W or 0.33µF X2 capacitor
Maximum load
250W LED / 250W incandescent
Operating voltage
220-240V - 50Hz
Class
Class II (2)
Installation
Must be installed by a licensed electrician
Device requirements
iOS 10.0 or higher, Android 5.0 or higher
Construction
Flame retardant ABS for housing
Plate compatibility
Slots seamlessly into HPM®, Clipsal® and Vynco® branded, wall plates (series 30 type)
Operating temperature
10°C - 30°C
Protection type
Over heat, over load & over current
Control type
Push button / Rotary / BrilliantSmart app, Soft start for improved lamp life
Led indicator
Blue
Wifi info
IEEE802.11b/g/n, 2.4GHz, Mac Encryption; WEP/WAPI/TKIP/AES
Control type
Push button / Rotary / BrilliantSmart app, Soft start for improved lamp life
Advanced settings
Programmable minimum dimming level
Applications
Suitable for LED, Incandescent & Halogen dimmable lighting. Set up two-way switching through automation on our app by adding a second Smart Mech (Wifi required). When using multiple mech’s, group them on the app to control multiple rooms at once. Create behaviour-based rules through the app using automation, ie: when movement is detected from a sensor, the Mech switches the lights on automatically.
Standards
AS/NZS 60669-2-1, IEC 60669-1
Warranty
3 year
